Push Pull Cables
We manufacture a wide range of push-pull control cables which have applications in a variety of industries and sectors. We use the latest technology available in the industry, which allows us to manufacture push-pull cables which are lighter, more durable and more flexible.

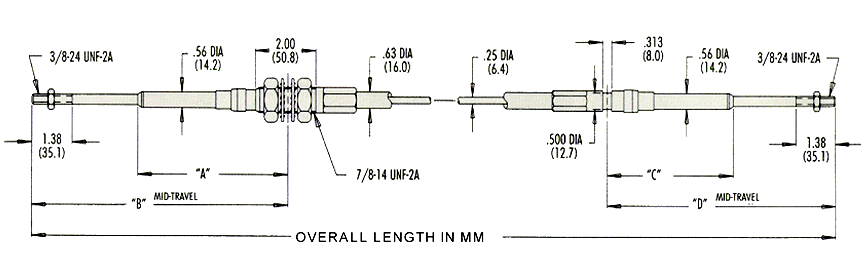

For a technical specification of the push-pull cables we manufacture, please see below:
HP Core or Solid 10-32 Thread
3″ Bend Radii
(HP) 6″ Bend Radii – (Solid Core)
| Travel | Bulkhead End | Clamp End | Operating Loads | |||
| Inch/(MM) | DIM “A” Inch/(MM) |
DIM “B” Inch/(MM) |
DIM “C” Inch/(MM) |
DIM “D” Inch/(MM) |
Push Lbs./(N) |
Pull Lbs./(N) |
| 1.0 (25.4) |
3.0 (76.2) |
4.4 (112.8) |
2.31 (58.7) |
3.75 (95.3) |
80 (356) |
120 (534) |
| 2.0 (50.8) |
4.00 (101.6) |
5.94 (150.9) |
3.31 (84.1) |
5.25 (133.4) |
80 (356) |
120 (534) |
| 3.0 (76.2) |
5.00 (127.0) |
7.44 (189.0) |
4.31 (109.5) |
6.75 (171.5) |
70 (311) |
120 (534) |
| 4.0 (101.0) |
6.00 (152.4) |
8.94 (227.1) |
5.31 (134.9) |
8.25 (209.6) |
60 (267) |
120 (534) |
| 5.0 (127.0) |
7.00 (177.8) |
10.44 (265.2) |
6.31 (160.3) |
9.75 (247.7) |
45 (200) |
120 (534) |
| 6.0 (152.4) |
8.0 (203.2) |
11.94 (303.3) |
7.31 (185.6) |
11.25 (285.7) |
35 (155.8) |
120 (534) |
| 7.0 (177.8) |
9.0 (228.6) |
13.44 (341.4) |
8.31 (211.0) |
12.75 (323.8) |
25 (111.3) |
120 (534) |
HP Core 1/4-28 Thread 5″ Bend radii
| Travel | Bulkhead End | Clamp End | Operating Loads | |||
| Inch/(MM) | DIM “A” Inch/(MM) |
DIM “B” Inch/(MM) |
DIM “C” Inch/(MM) |
DIM “D” Inch/(MM) |
Push Lbs./(N) |
Pull Lbs./(N) |
| 1.0 (25.4) |
3.13 (79.5) |
4.69 (119.1) |
2.50 (63.5) |
4.06 (103.1) |
150 (667) |
230 (1023) |
| 2.0 (50.8) |
4.13 (140.9) |
6.19 (157.2) |
3.50 (88.9) |
5.56 (141.2) |
150 (667) |
230 (1023) |
| 3.0 (76.2) |
5.13 (130.3) |
7.69 (195.3) |
4.50 (114.3) |
7.06 (179.3) |
125 (556) |
230 (1023) |
| 4.0 (101.6) |
6.13 (155.7) |
9.19 (233.4) |
5.50 (139.7) |
8.56 (217.4) |
100 (445) |
230 (1023) |
| 5.0 (127.0) |
7.13 (181.1) |
10.69 (271.5) |
6.50 (165.1) |
10.06 (255.5) |
75 (334) |
230 (1023) |
| 6.0 (152.4) |
8.13 (206.5) |
12.19 (309.6) |
7.50 (190.5) |
11.56 (293.6) |
55 (244.8) |
230 (1023) |
| 7.0 (177.8) |
9.13 (231.9) |
13.6 (347.7) |
8.50 (215.9) |
13.06 (331.7) |
45 (200.3) |
230 (1023) |
HP Core 5/16-24 Thread 7″ Bend radii
| Travel | Bulkhead End | Clamp End | Operating Loads | |||
| Inch/(MM) | DIM “A” Inch/(MM) |
DIM “B” Inch/(MM) |
DIM “C” Inch/(MM) |
DIM “D” Inch/(MM) |
Push Lbs./(N) |
Pull Lbs./(N) |
| 1.0 (25.4) |
3.25 (82.6) |
5.00 (127.0) |
2.56 (65.0) |
4.31 (109.5) |
250 (1112) |
400 (1779) |
| 2.0 (50.8) |
4.25 (108.0) |
6.50 (165.1) |
3.56 (90.4) |
5.81 (147.6) |
250 (1112) |
400 (1779) |
| 3.0 (76.2) |
5.25 (133.4) |
8.00 (203.2) |
4.56 (115.8) |
7.31 (185.7) |
210 (934) |
400 (1779) |
| 4.0 (101.6) |
6.25 (158.8) |
9.50 (241.3) |
5.56 (141.2) |
8.81 (223.8) |
170 (756) |
400 (1779) |
| 5.0 (127.0) |
7.25 (184.2) |
11.00 (279.4) |
6.56 (166.6) |
10.31 (261.9) |
130 (578) |
400 (1779) |
| 6.0 (152.4) |
8.25 (209.6) |
12.50 (317.5) |
7.56 (192.0) |
11.81 (299.9) |
90 (400.5) |
400 (1779) |
| 7.0 (177.8) |
9.25 (235) |
14.00 (355.6) |
8.56 (217.4) |
13.31 (338.0) |
60 (267) |
400 (1779) |
HP Core 3/8-24 Thread 10″ Bend radii
| Travel | Bulkhead End | Clamp End | Operating Loads | |||
| Inch/(MM) | DIM “A” Inch/(MM) |
DIM “B” Inch/(MM) |
DIM “C” Inch/(MM) |
DIM “D” Inch/(MM) |
Push Lbs./(N) |
Pull Lbs./(N) |
| 1.0 (25.4) |
3.69 (93.7) |
5.56 (141.2) |
3.19 (81.0) |
5.06 (128.5) |
700 (3114) |
1000 (4448) |
| 2.0 (50.8) |
4.69 (119.1) |
7.06 (179.3) |
4.19 (106.4) |
6.56 (166.6) |
700 (3114) |
1000 (4448) |
| 3.0 (76.2) |
5.69 (144.5) |
8.56 (217.4) |
5.19 (131.8) |
8.06 (204.7) |
600 (2669) |
1000 (4448) |
| 4.0 (101.6) |
6.69 (169.9) |
10.06 (255.5) |
6.19 (157.2) |
9.56 (242.8) |
500 (2224) |
1000 (4448) |
| 5.0 (127.0) |
7.69 (195.3) |
11.56 (293.6) |
7.19 (182.6) |
11.06 (280.9) |
400 (1779) |
1000 (4448) |
| 6.0 (152.4) |
8.69 (220.7) |
13.06 (331.7) |
8.19 (208.0) |
12.56 (319.0) |
275 (1223.8) |
1000 (4448) |
| 7.0 (177.8) |
9.69 (246.1) |
14.56 (369.8) |
91.9 (233.4) |
14.06 (357.1) |
150 (667.5) |
1000 (4448) |
