Quick Disconnect HP Cables

Cable-Tec specialise in the manufacturing of a wide range of high quality control cables. We use the latest technology available in our industry, which enables us to produce control cables which are now more durable and more flexible.

A quick disconnect high performance cable is a cable which allows for the quick and safe disconnection of a line without losing any hydraulic fluid or without the entrance of air into the system. The quick disconnect cable is important because it can save time, money and possibly, lives.
For a technical specification on the quick disconnect HP cables we can manufacture, please see below:

Light Duty
exposed Solid Core or 1 x 7 HP Core

HP Core
Choose for best flexibility, lower backlash, and higher efficiency.
Polymer coated 1 x 7 wire rope

Solid Core
.075 solid stainless steel core

Heavy Duty
3 & 4 Series threaded end rods

Temperature Range
-65 to +225°F / -54 to +107°C Std.
-65 to +300°F / -54 to + 149°C HEFT 2

Applications

Engine RPM, or where course or fine adjustments are needed

Choice or core type:
HP Core – polymer coated 1 x 7 – Solid .075 stainless steel core
Choice of 4 cable ends – Exposed core

Quick Disconnect Cable Heads
Description
92 Vernier-Black Center Button
73 Positive Lock Head – 3″ Travel
75 Positive Lock Head – 5″ Travel
94 Vernier-Red Center Button
90 Vernier-Small Knobs
Load Rating: Maximum 20 lbs. is recommended.



Choice or core type:
HP Core – polymer coated 1 x 7 – Solid .075 stainless steel core
10-32 Threaded Rod (output end)

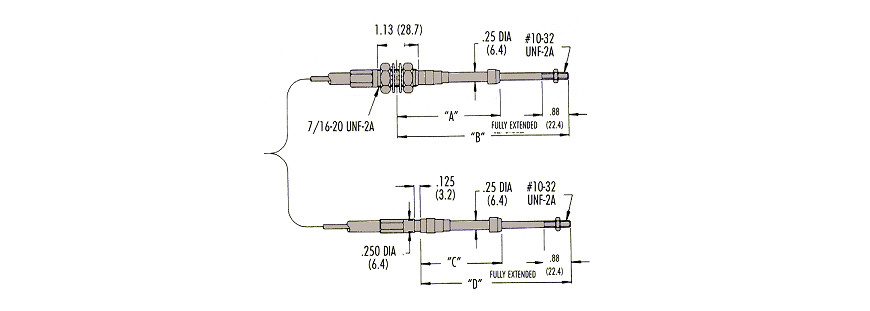

Cable Head options see table under Light Duty 3 Series

Travel Bulkhead End Clamp End
Inch/(MM) DIM “A”
Inch/(MM)
DIM “B”
Inch/(MM)
DIM “C”
Inch/(MM)
DIM “D”
Inch/(MM)
1.0
(25.4)
3.00
(76.2)
4.95
(125.5)
2.31
(58.7)
4.25
(108.0)
2.0
(50.8)
4.00
(101.6)
6.94
(176.3)
3.31
(84.1)
6.25
(158.8)
3.0
(76.2)
5.00
(127.0)
8.94
(227.1)
4.31
(109.5)
8.25
(209.6)

HP Core – 1/4″ – 28 Threaded Rod (output end)

Cable Head options see table under Light Duty 3 Series

Travel Bulkhead End Clamp End
Inch/(MM) DIM “A”
Inch/(MM)
DIM “B”
Inch/(MM)
DIM “C”
Inch/(MM)
DIM “D”
Inch/(MM)
1.0
(25.4)
3.13
(79.5)
5.19
(131.8)
2.50
(63.5)
4.56
(115.8)
2.0
(50.8)
4.13
(104.9)
7.19
(182.6)
3.50
(88.9)
6.56
(166.6)
3.0
(76.2)
5.13
(130.3)
9.19
(233.4)
4.50
(114.3)
8.56
(217.4)
