Hardware Control Cables

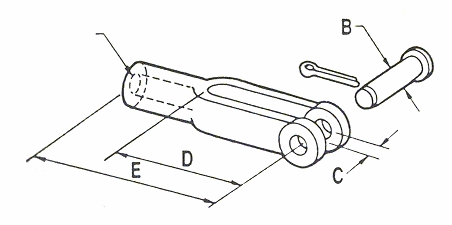

Clevises
| Part # | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
|
| 39003-1 | 10-32 UNF-2B |
3/16 (4.8) |
7/32 (5.6) |
1 (25.4) |
1-9/16 (39.7) |
| 49003-2 | 10-32 UNF-2B |
1/4 (6.4) |
9/32 (7.1) |
1-1/4 (31.8) |
2 (50.8) |
| 69003-2 | 10-32 UNF-2B |
5/16 (7.9) |
11/32 (8.7) |
1-7/16 (36.5) |
2-1/4 (57.2) |
| 4 series | |||||
| 49003-1 | 1/4-28 UNF-2B |
1/4 (6.4) |
9/32 (7.1) |
1-1/4 (31.8) |
2 (50.8) |
| 49044-1 | 1/4-28 UNF-2B |
1/2 (12.7) |
9/16 (14.3) |
1-7/8 (47.6) |
3 (76.2) |
| 69003-3 | 1/4-28 UNF-2B |
5/16 (7.9) |
11/32 (8.7) |
1-7/16 (36.5) |
2-1/4 (57.2) |
| 6 series | |||||
| 49003-3 | 5/16-24 UNF-2B |
1/4 (6.4) |
9/32 (7.1) |
1-1/4 (31.8) |
2 (50.8) |
| 49044-2 | 5/16-24 UNF-2B |
1/2 (12.7) |
9/16 (14.3) |
1-7/8 (47.6) |
3 (76.2) |
| 69003-1 | 5/16-24 UNF-2B |
5/16 (7.9) |
11/32 (8.7) |
1-7/16 (36.5) |
2-1/4 (57.2) |
| 69034 | 5/16-24 UNF-2B |
7/16 (11.1) |
1/2 (12.7) |
1-7/8 (47.6) |
2-7/8 (73.1) |
| 89003-2 | 5/16-24 UNF-2B |
3/8 (9.5) |
7/16 (11.1) |
1-5/8 (41.3) |
2-1/2 (63.5) |
| 8 series | |||||
| 89003-1 | 3/8-24 UNF-2B |
3/8 (9.5) |
7/16 (11.1) |
1-5/8 (41.3) |
2-1/2 (63.5) |
| Special Series | |||||
| 49044-3 | 3/8-24 UNF-2 |
1/2 (12.7) |
9/16 (14.3) |
1-7/8 (47.6) |
3 (76.2) |
| 49044-4 | 1/2-20 UNF-2 |
1/2 (12.7) |
9/16 (14.3) |
1-7/8 (47.6) |
3 (76.2) |
| 69034-1 | 3/8-24 UNF-2 |
7/16 (11.1) |
1/2 (12.7) |
1-7/8 (47.6) |
2-7/8 (73.1) |

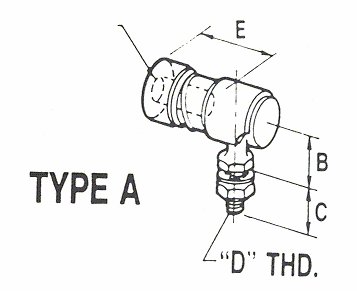

Ball Joint
| Part # | Type | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
|
| 39006 | A | 10-32 UNF-2B |
15/32 (11.9) |
9/16 (14.3) |
1/4-28 UNF-2A |
31/32 (24.6) |
| 4 series | ||||||
| 49006 | A | 1/4-28 UNF-2B |
15/32 (11.9) |
9/16 (14.3) |
1/4-28 UNF-2A |
31/32 (24.6) |
| 49007 | A | 1/4-28 UNF-2B |
15/32 (11.9) |
7/8 (22.2) |
5/16-24 UNF-2A |
31/32 (24.6) |
| 6 series | ||||||
| 69007 | A | 5/16-24 UNF-2B |
17/32 (13.5) |
11/16 (17.5) |
5/16-24 UNF-2A |
1-1/8 (28.5) |
Conduit Clip

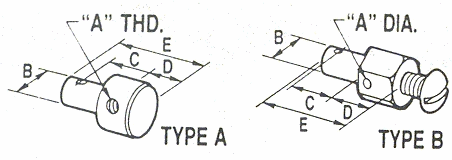

Pivot
| Part # | Type | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
|
| 39011-1 | B | 7/64 (2.8) |
1/4 (6.4) |
5/32 (4.0) |
5/16 (7.9) |
9/16 (14.3) |
| 39011-2 | B | 7/64 (2.8) |
1/4 (6.4) |
19/64 (7.5) |
5/16 (7.9) |
11/16 (17.5) |
| 39050-1 | B | 7/64 (2.8) |
5/16 (7.9) |
5/32 (4.0) |
5/16 (7.9) |
9/16 (14.7) |
| 39050-2 | B | 7/64 (2.8) |
5/16 (7.9) |
19/64 (7.5) |
5/16 (7.9) |
11/16 (17.5) |
| 39042 | A | 10-32 UNF-2B |
1/4 (6.4) |
13/64 (5.2) |
21/64 (8.3) |
5/8 (15.9) |
| 39045 | A | 10-32 UNF-2B |
5/16 (7.9) |
3/8 (9.5) |
3/8 (9.5) |
15/16 (23.8) |
| 4 series | ||||||
| 49008 | A | 1/4-28 UNF-2B |
1/4 (6.4) |
13/32 (10.3) |
1/2 (12.7) |
1-1/16 (27.0) |
| 49008-1 | A | 1/4-28 UNF-2B |
1/4 (6.4) |
5/16 (7.9) |
1/2 (12.7) |
31/32 (24.6) |
| 49011 | A | 1/4-28 UNF-2B |
1/4 (6.4) |
13/64 (5.2) |
7/16 (11.1) |
3/4 (19.1) |
| 49042 | A | 1/4-28 UNF-2B |
3/8 (9.5) |
15/32 (11.9) |
1/2 (12.7) |
1-3/16 (30.2) |
| 50061-1 | A | 1/4-28 UNF-2B |
5/16 (7.9) |
3/16 (4.8) |
9/16 (14.3) |
27/32 (21.4) |
| 6 series | ||||||
| 50061 | A | 5/16-24 UNF-2B |
5/16 (7.9) |
3/16 (4.8) |
9/16 (14.3.) |
27/32 (21.4) |
Clip Bracket
| Part # | Type | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
|
| 30121 | B | 9/32 (7.5) |
3/8 (9.5) |
1/4 (6.4) |
5/8 (15.9) |
1-7/32 (30.0) |
| 30399 | B | 9/32 (7.5) |
3/8 (9.5) |
1/4 (6.4) |
5/8 (15.9) |
1-7/32 (30.0) |
| 39004-1 stainless |
A | 9/32 (7.5) |
3/8 (9.5) |
1/4 (6.4) |
5/8 (15.9) |
1-5/16 (33.3) |
| 39004-2 plated steel |
A | 9/32 (7.5) |
3/8 (9.5) |
1/4 (6.4) |
5/8 (15.9) |
1-5/16 (33.3) |
| 39046 | A | 9/32 (7.5) |
3/8 (9.5) |
1/4 (6.4) |
5/8 (15.9) |
2-5/16 (58.7) |
Stop Collar
| Part # | Type | A | B | CD |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
|
| 30103 | A | 7/64 (2.8) |
5/16 (7.9) |
5/16 (7.9) |
| 4 series | ||||
| 40081 | A | 3/16 (4.8) |
5/16 (7.9) |
5/16 (7.9) |
| 49043 | B | 3/16 (4.8) |
1/4 (6.4) |
7/16 (11.1) |
Terminal Eyes
| Part # | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
|
| 49004-4 | 10-32 UNF-2B |
1/8 (3.2) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 4-series | |||||
| 49004-1 | 1/4-28 UNF-2B |
5/16 (7.9) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 49004-2 | 1/4-28 UNF-2B |
1/2 (12.7) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 49004-3 | 1/4-28 UNF-2B |
1/4 (6.4) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 6 series | |||||
| 69004-1 | 5/16-24 UNF-2B |
3/8 (9.5) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 69004-2 | 5/16-24 UNF-2B |
5/16 (7.9) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 69004-3 | 5/16-24 UNF-2B |
1/2 (12.7) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
| 69004-4 | 5/16-24 UNF-2B |
1/4 (6.4) |
5/8 (15.9) |
3/8 (9.5) |
1-7/8 (47.6) |
Field Clamp

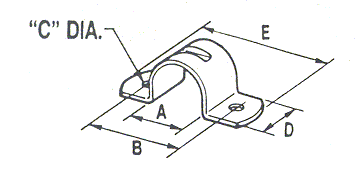

Clamp
| Part # | A | B | C | D | E |
| 3 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
| 39001 | 3/8 (9.5) |
1 (25.4) |
13/64 (5.2) |
1/2 (12.7) |
1-1/2 (38.1) |
| 4 series | |||||
| 49001 | 1/2 (12.7) |
1 (25.4) |
7/32 (5.6) |
1/2 (12.7) |
1-1/2 (38.1) |
| 6 series | |||||
| 69001 | 9/16 (14.3) |
1-1/4 (31.8) |
9/32 (7.1) |
5/8 (15.9) |
1-5/8 (41.3) |

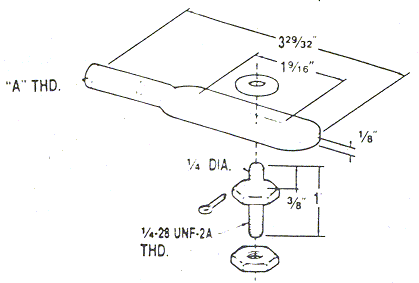

Slip Link Kit
| Kit Number | “A” THD | |
| Polymer | 59049-1 59049-2 |
10/32 UNF-2A 1/4-28 UNF-2A |
| Metal | M00-59049-1 M00-59049-2 |
10/32 UNF-2A 1/4-28 UNF-2A |
SHIM
| Part # | A | B | C | D | E |
| 3 & 4 series | inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
inch (mm) |
| 39002 | 13/64 (5.2) |
1 (25.4) |
1/2 (12.7) |
3/32 (2.4) |
1-1/2 (38.1) |
| 6 series | |||||
| 69002 | 9/32 (7.5) |
1-1/4 (31.8) |
5/8 (15.9) |
5/64 (2.0) |
1-3/4 (44.5) |

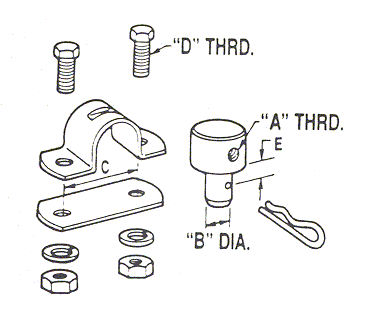

Shift Cable Connection Kit
| Kit # | A THD | B DIA | C | D THD | E |
| inch (mm) |
inch (mm) |
inch (mm) |
|||
| 50030 | 1/4-28 UNF-2B |
5/16 (7.9) |
1 (25.4) |
10-32 UNF-2A |
1/8 (3.2) |
| 50035 | 5/16-24 UNF-2B |
5/16 (7.9) |
1-1/4 (31.8) |
1/4-20 UNF-2A |
1/8 (3.2) |
| 59033 | 10-32 UNF-2B |
5/16 (7.9) |
1 (25.4) |
10-32 UNC-2A |
1/8 (3.2) |
Field Hub Kits for Standard 3 Series Cables
Solid or HP core
Conduit Outside Diameter of .31″
Kit #39067-1
Kit #39067-2
Kit #39067-3
Kit #39067-4
